Description

STOCK INJECTOR POWER FLASH STAGES	FUEL TYPE	BOOST PRESSURE	WHP	CRANK HP (APPROX.)	REQUIRED PARTS
Stock	91	16	152	168	N/A
Stage 2-91	91	17.5	162	180	N/A
Stage 3-93	93	18.5	166	185	Gap Spark Plus to .018 or purchase pre-gapped plugs.
Stage 4-96	96	20	169	189	Gap Spark Plus to .018 or purchase pre-gapped plugs.

• STOCK INJECTOR NOTE: Stage 3-93 and up require the spark plugs be gapped to .018, or purchase EVP PRE-GAPPED PLUGS.

BIG INJECTOR POWER FLASH STAGES	FUEL TYPE	BOOST PRESSURE	CRACK PRESSURE	WHP	CRANK HP (APPROX.)	REQUIRED PARTS (INCLUDED)
STAGE 2RWi-91	91	17.5	8 PSI	162	180	1300cc Injectors, Wastegate Actuator
STAGE 3RWi-93	93	18.5	8 PSI	166	185	1300cc Injectors, Wastegate Actuator
STAGE 4RWi-96	96	20	8 PSI	168	188	1300cc Injectors, Wastegate Actuator
STAGE 5RWi-X85	E85	20	8 PSI	176	196	1300cc Injectors, Wastegate Actuator

• BIG INJECTOR NOTE: In addition to the included 1300cc Injectors and Wastegate Actuator, EVP Big Injector Tunes also require upgraded BOV or BRV, Charge Tubes, high-flow exhaust, clutching, gapped spark plugs, EVP V-Flow Intake, EVP Silicone Intake Boot, and World's Best Belt.

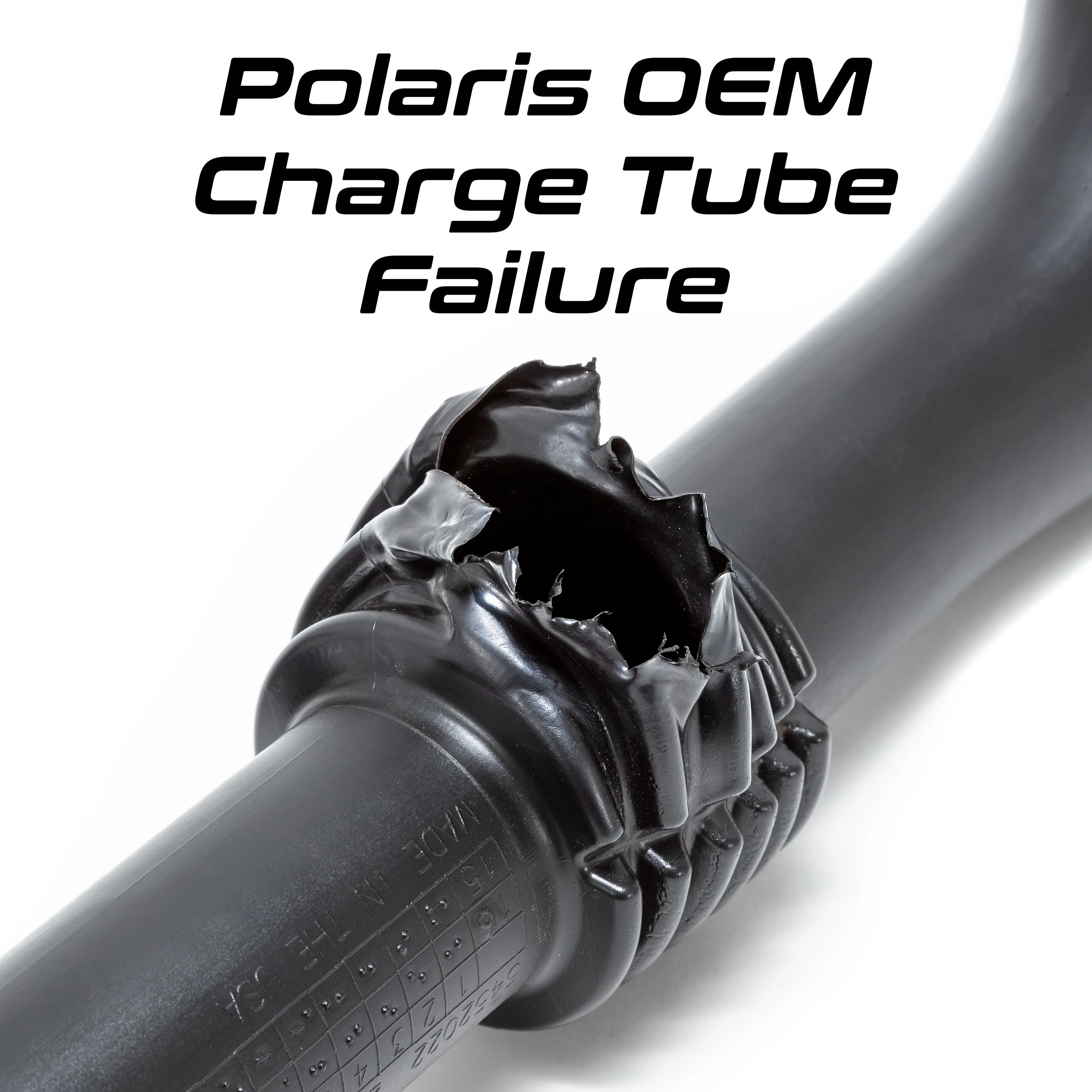

RECOMMENDED UPGRADES: It is highly recommended that you upgrade to EVP Silicone Charge Tubes and V-Flow Intake, as the plastic OEM units are highly susceptible to blowouts (SEE PHOTOS). Additional recommended components include BOV or BRV, high-flow exhaust, clutch kit and spark plugs.

TUNE FEATURES

• Massive wheel horsepower gains
• Speed limiters raised in high and low gear
• Rev limiters raised in high and low gear
• Torque limits raised for enhanced responsiveness
• Revised fan temperature settings significantly lower coolant temperatures
• Improved boost response and low-to-mid range power

• Left-foot braking enabled (gas and brake at the same time without going into limp mode)
• Fueling corrected so no additional controllers are required
• More aggressive throttle and overall throttle response
• Big Injector tunes include EVP 1300CC Injectors (set of 2), & EVP Wastegate Actuator

If you previously purchased an EVP tune for your XP Turbo or Turbo S without Fuel Pump Control Module (formerly referred to as “Non-EVAP”), you can access these revised tunes free of charge. However, previous customers with Big Injector tunes will be required to purchase upgraded 1300cc Injectors and Wastegate Actuator, as the older versions are not compatible with the revised tunes.

• MAPTUNER CUSTOMERS: Email your name and Maptuner X account email address to [email protected] or call (715) 247-3862 and we will manually load the files for you.

FITMENT

2019-'21 Polaris RZR XP Turbo & Turbo S models Without Fuel Pump Control Module

CLICK HERE TO FIND OUT IF YOUR RZR IS EQUIPPED WITH AN FPCM

INSTRUCTIONS

2019-'21 Polaris RZR XP Turbo & Turbo S models Without Fuel Pump Control Module
